drive units, driving units for locomotive, engine, motors, model railway

(33)

The drive units are fitted with a patented automatic clutch that allows the wheels to freewheel along the track. Only when power is applied does the drive engage between the motor and the wheels. The drive units offered are standardized for our range of models and operate from a Direct Current (DC) supply. If you wish to use the units with Alternating Current (AC) supply then it will be necessary to order the AC module #840 which we offer as an optional accessory. This features a rectifier and also allows switchable change of direction. The change of direction function is operated either by stopping the locomotive (AC-0) or by applying a voltage surge pulse (AC-1). Please select the correct module to suit.

If you require a drive unit with different wheel diameters or to your own specific specification, please contact us and we will advise you whether it is possible to accommodate your requirements.

Technical specification:



Power supply: DC, voltage 0-16V. We do not recommend higher voltages than 22V.

Speed: Depends on the voltage and load of the drive unit. At 12V, the unit speed is about 0.7m/s (if there is no load)

Current: 0.1A with no load, 0.25A at an average load and 0.4A with maximum load.

In the case of a twin-motor locomotive, the current values are doubled.


Select the parameters of the goods
State oxstatenews Novinka oxstatesellout Výprodej oxstatediscount Sleva oxstateaction Akce e1049b52a774fbc92.00368334 Doprodej
Page 1 / 4
1
Products per page: 10 20 50 100 Third gallery Small rows
 Title Price

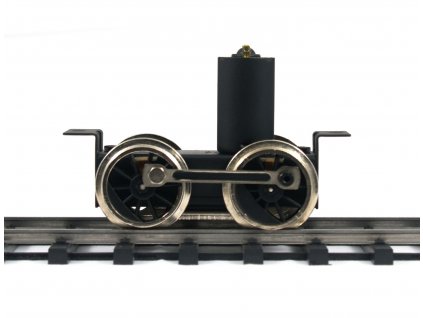

Driving Unit, axles distance 40 mm Driving Unit, axles distance 40 mm Art.No.: 231
Will be delivered within 10-14 working days
71 £
more Info
Driving Unit, axles distance 40 mm Driving Unit, axles distance 40 mm Art.No.: 232
Will be delivered within 10-14 working days
71 £
more Info
Driving Unit, axles distance 40 mm Driving Unit, axles distance 40 mm Art.No.: 232HF
Will be delivered within 10-14 working days
98 £
more Info
Driving Unit for Tram Driving Unit for Tram Art.No.: 240
This item is not in stock
80 £
more Info
Driving Unit, axles distance 60 mm Driving Unit, axles distance 60 mm Art.No.: 241
Will be delivered within 10-14 working days
83 £
more Info
Driving Unit, axles distance 60 mm Driving Unit, axles distance 60 mm Art.No.: 242HF
Will be delivered within 10-14 working days
109 £
more Info
Driving Unit, axles distance 60 mm Driving Unit, axles distance 60 mm Art.No.: 243
Will be delivered within 10-14 working days
80 £
more Info
Driving Unit, axles distance 60 mm, High Flange Wheels Driving Unit, axles distance 60 mm, High Flange Wheels Art.No.: 243HF
Will be delivered within 10-14 working days
103 £
more Info
Driving Unit, axle distance 60 mm with outer frame Driving Unit, axle distance 60 mm with outer frame Art.No.: 245
Will be delivered within 10-14 working days
91 £
more Info
Driving Unit, axle distance 60 mm with outer frame, High Flange Wheels Driving Unit, axle distance 60 mm with outer frame,… Art.No.: 245 HF
This item is not in stock
115 £
more Info
